Product information

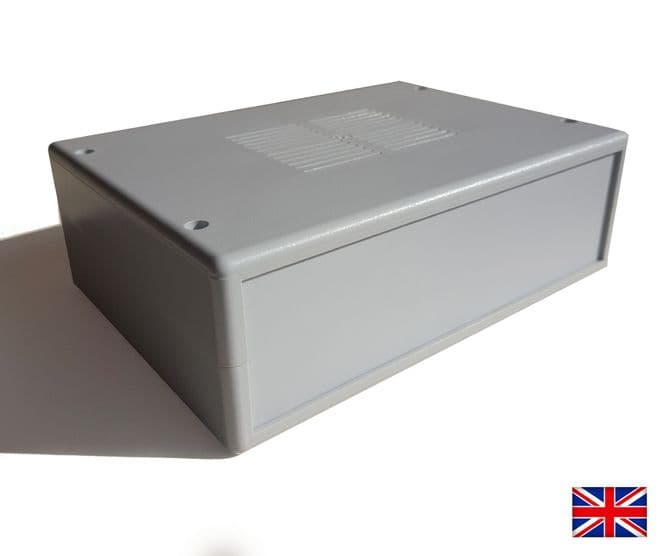

The PM1A (Grey) Instrument Case can be used for a variety of applications.
External size: 175 x 130 x 59mm
Internal size: 170 x 122 x 52mm.
Screw pillars intrude 6mm x 7mm into box.
Wall section 3.2mm.
Panel thickness 1.6mm.
Maplin Code: KC61
- Instrument style case with radii on all external corners.
- Two similar halves fixed together with four self tapping screws (included).
- Case sides located by tongue & groove.
- Drop in end plates provide a versatile design.
- 6 mounting bosses (pillars), 4mm high, are provided in both top and bottom faces for PCB fixing.
- Plastic end panels (can easily be replaced with metal end plates)
- Top & bottom faces have ventilation slots in the centre; slots are 1.2mm wide and 32mm long. They cover a total area of 70mm x 52mm.
